Power catamaran · foil-assisted
Folded from aluminium plate, foil-assisted, and laid out on a single living plane.
01The boat
SWALLOW is a 17.7-metre performance catamaran built in Burgas from CNC-folded marine aluminium, with a duplex stainless hydrofoil between the hulls and no paint at all — the brushed, faceted metal is the finish.

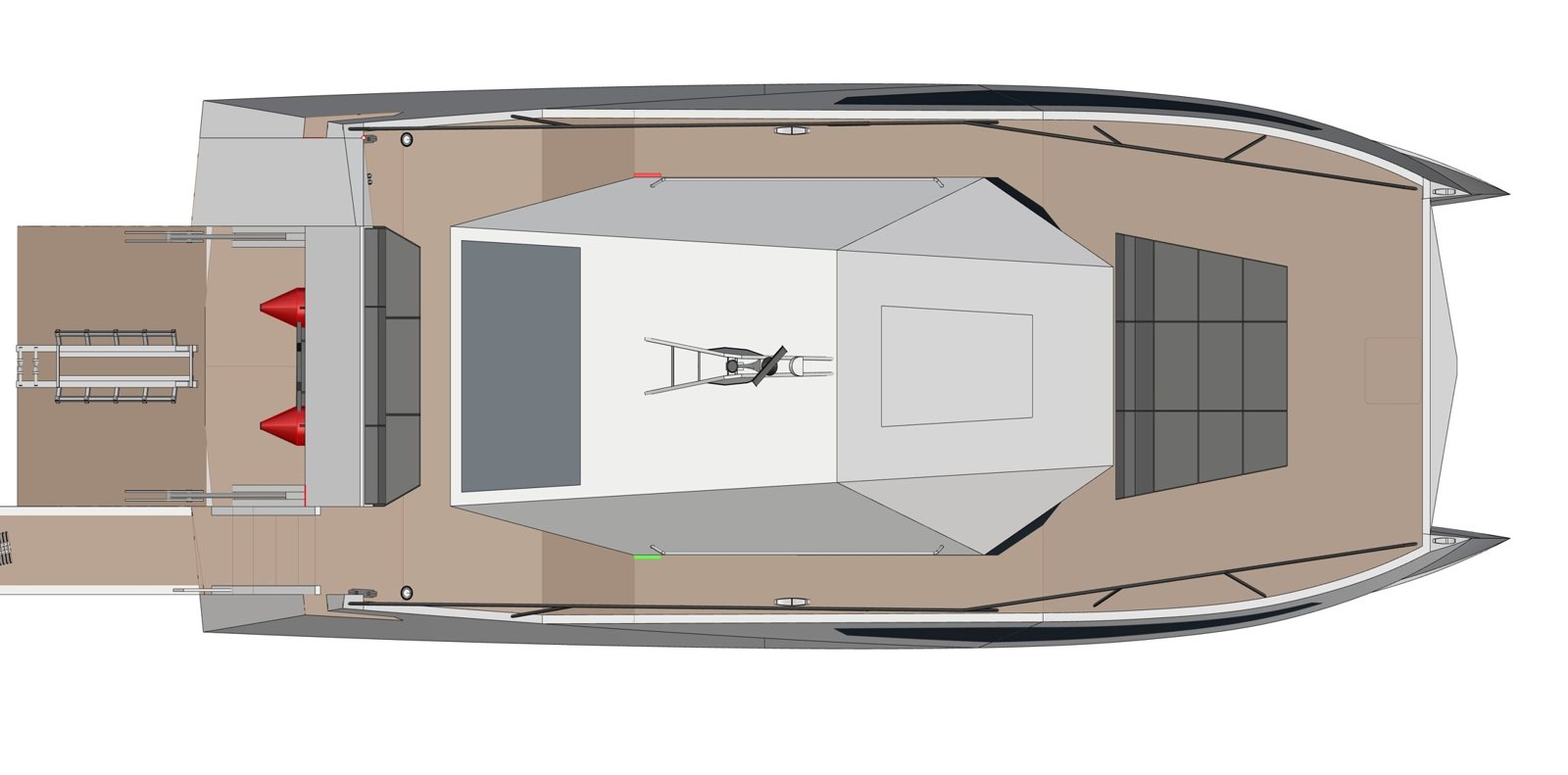

Inside, the idea is simpler still: one level. Island galley, saloon and cockpit sit on the same plane, separated only by a full-width sliding glass wall with a flush threshold. Open it and the whole after end of the boat becomes one room, from the galley island to the transom step.
She is certified CE Category B for up to twelve people, on twin Volvo Penta D8 IPS800 drives with joystick docking.
02What defines her
Island galley, saloon and cockpit on one level with flush thresholds and a full-width sliding glass wall. Hull-side glazing is enlarged at seated and berth level, and the joinery is pale ash — modular, and light enough to stay off the weight budget. No stone anywhere on board.
Hull and superstructure are cut and folded from marine aluminium plate and welded — no fairing compound, no paint, no coating stack. The finish is brushed raw metal, the glazing flat faceted glass, and the hardtop aluminium too: one material, one weld shop, no galvanic pairing.
A single SAF 2205 duplex stainless foil spans the tunnel on a central strut, with small adjustable trim foils at the transoms. It is built in Italy and faired into the hull; its exact size and position are being set by the naval-architecture work now under way.
03Renders

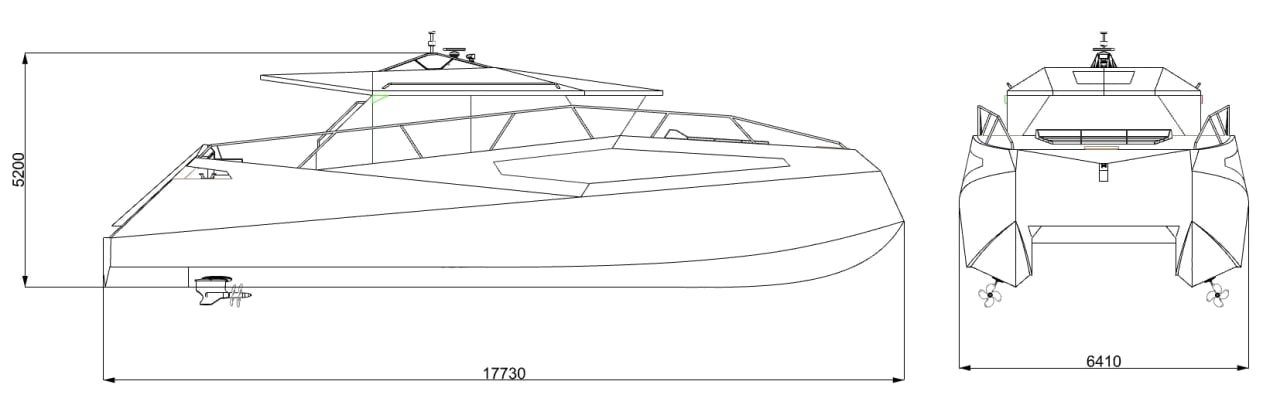

04Drawings
05Standard specification
Everything here is included in the base boat.
06Options
The base boat is lean on purpose. Options are quoted on request.
07Build & certification
SWALLOW is built at the Stingray yard in Burgas, Bulgaria. At 17.7 metres she falls under the Recreational Craft Directive and is certified CE Category B through a notified body — no class society applies below 24 metres. Hull no. 1 is in build.
Displacement, draft, speed and range are not published: the naval-architecture work that fixes them is still open. Length and beam are taken from the general-arrangement model of 28 August 2026 and remain subject to final engineering.
Every hull here is cut and folded to the ORIGAMI geometry and welded at our own yard on the Black Sea. Tell us what you need and we will answer with drawings, not a brochure.
